This site has been designed to provide a source of technical information on the Lascar Electronics MDM-1 multifunction Display Module, and its associated development board. The design criteria for this site was to have a mailing list, downloadable files in zip format and no monthly costs so apologies for any adverts and pop-ups.

The MDM-1 allows the user to create there own instrument and display solution rapidly.  The module's core components comprise of an LCD and a PIC microcontroller.  The display features a backlit 5-digit 14 segment starburst LCD.  The 16F877 PIC microcontroller runs at 4 Mhz and features 8k x 14-bit words of Flash program memory, 368 bytes of RAM, 256 bytes of EEPROM , a 8 channel 10-bit A/D converter, a I2C interface, a SPI interface, 8 and 16-bit timers plus I/O ports.

An optional upgrade is to have either an RS232 or 2 wire RS485 interface added onboard.

The MDM-1 can be programmed in many languages with the appropriate software development environment.  On this site you will find a selection of applications that demonstrate the capabilities of the product.

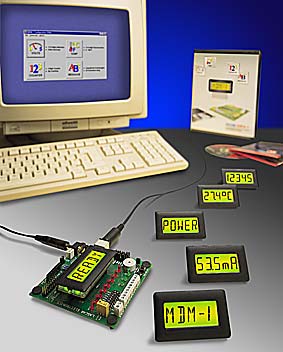

The MDM-1 development board provides a hardware interface that allows for design of the final product.  The completed design will have its own custom interface to suit the application.  It has provision to fit a I2C EEPROM, RS232 converter, temperature sensor, peak voltage detector,  reference, LED's, switches 4 x 4 keyboard interface and a HD44780 & Graphics LCD interface.
Last Updated 11th August 2011
SOFTWARE including Downloads

HARDWARE including Downloads

GENERAL including Downloads

Frequently Asked Questions.

Software/Hardware Developers

DMX 973B/SP 5-GFX1 Graphic  Displays

DDM4/OEM4 Serial Displays

Added additional getting started info links for PIC.

Updated links.

Added a code example for driving the DMX 973B in assembler.

Added SP 5-GFX1 driver chip errata from Lars Thornqvist.

Updated the Getting Going with Lascar DMX displays document.

Added section on using the SPI hardware to control a SP5-GFX1.
Any comment, queries, additions or uploads then please contact me at the address below.
